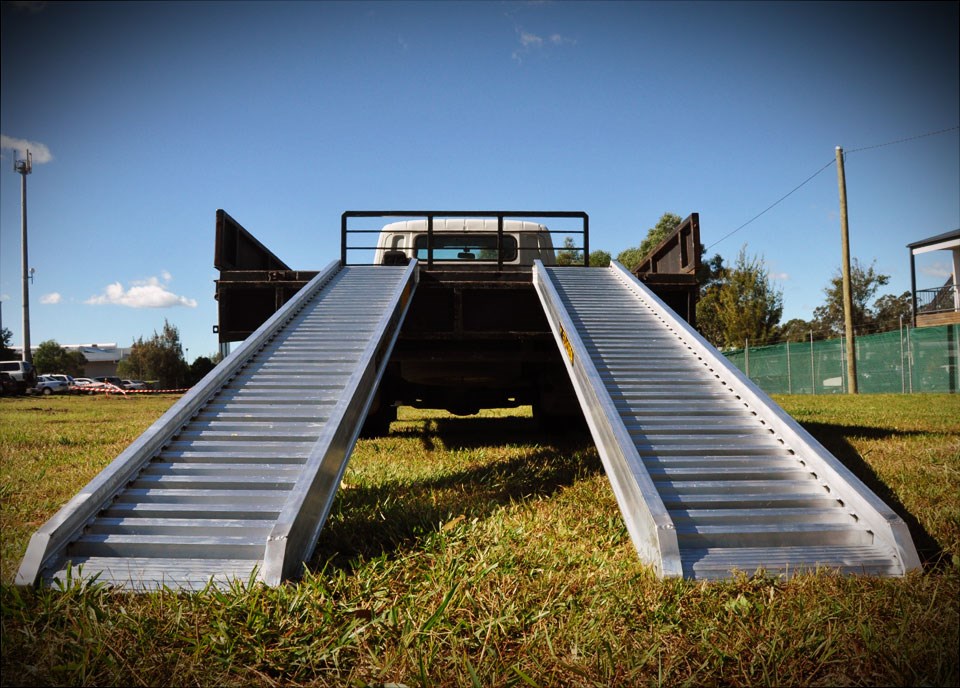

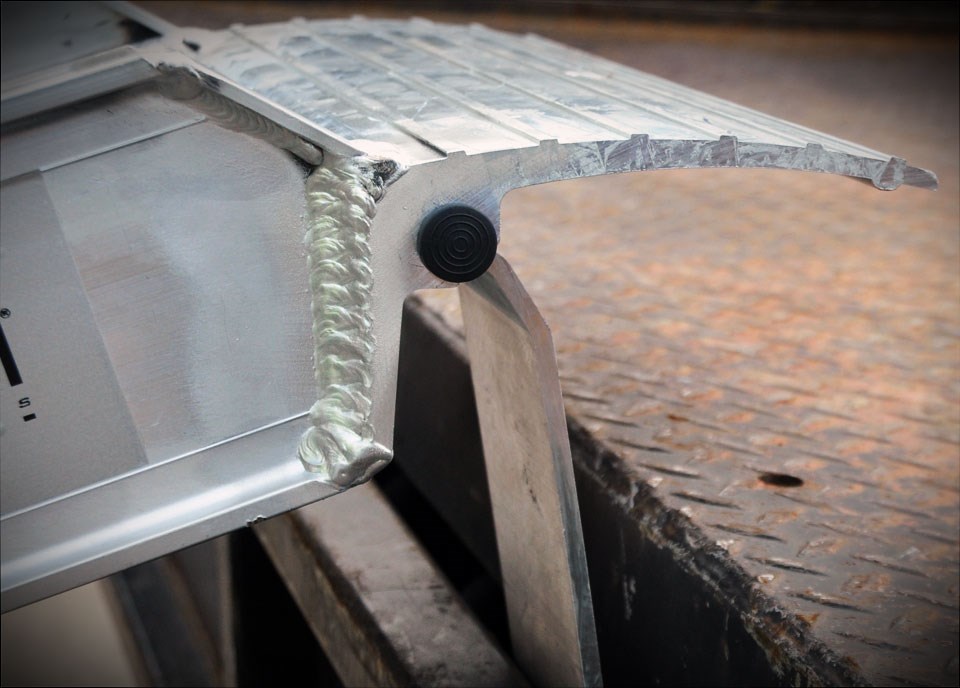

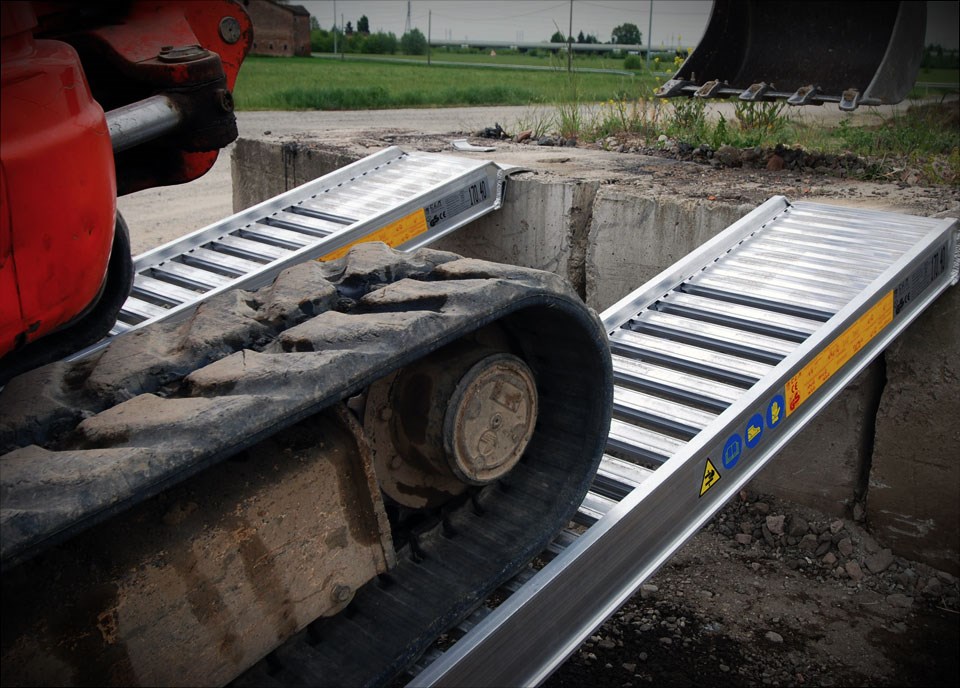

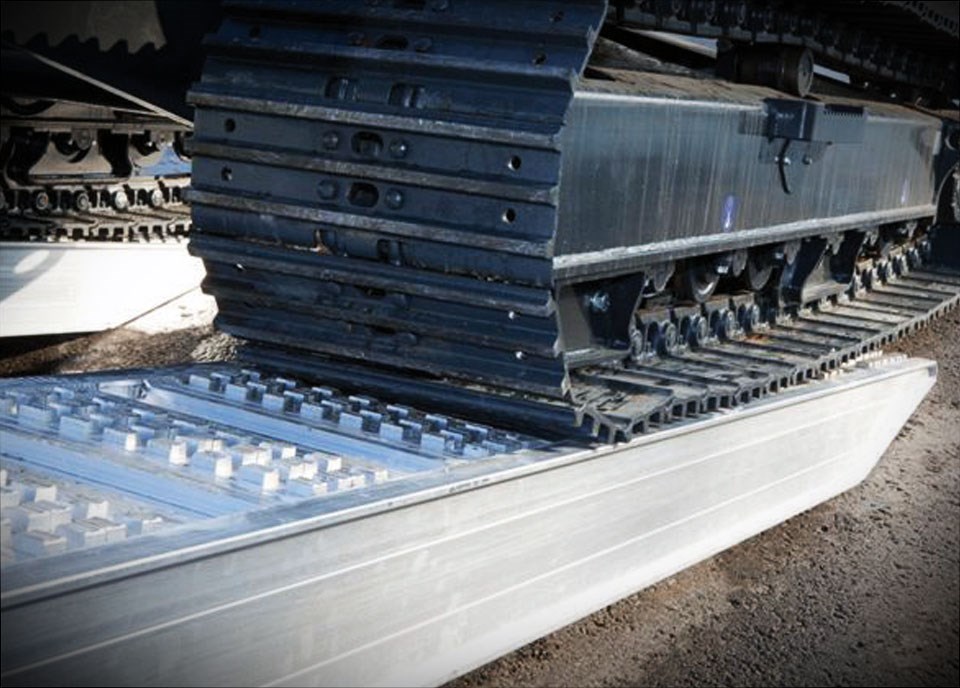

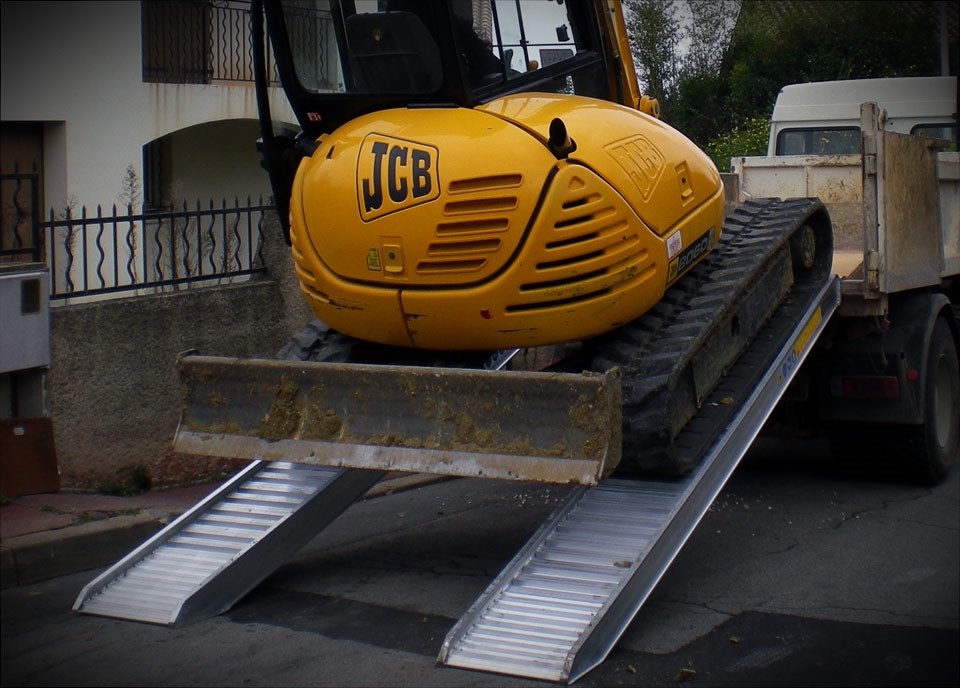

ALUMINIUM LOADING RAMPS GALLERY

Click on the images below to enlarge.

DESCRIPTION	PRODUCT CODE	BEAM	WIDTH (INT)	WIDTH (EXT)	WEIGHT
Standard	LR152530	64 mm	255 mm	300 mm	14 kg
Standard	LR233030	100 mm	300 mm	360 mm	23 kg
Standard	LR303030	115 mm	300 mm	360 mm	26 kg
Standard	LR303535	120 mm	350 mm	410 mm	36 kg
Standard	LR353535	125 mm	350 mm	410 mm	37 kg
Standard	LR403545	140 mm	450 mm	510 mm	46 kg
Standard	LR473545	155 mm	450 mm	510 mm	56 kg
Standard	LR473550	155 mm	500 mm	560 mm	51 kg
Standard	LR593545	150 mm	450 mm	510 mm	53 kg
Universal	LRU593550	150 mm	500 mm	560 mm	60 kg
Universal	LRU663550	170 mm	500 mm	560 mm	61 kg
Universal	LRU823550	180 mm	500 mm	560 mm	77 kg

Australia's leading machinery attachment manufacturer est. 1981
