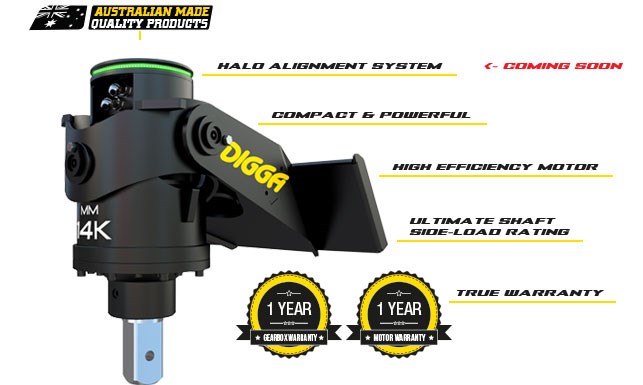

Specifications | MM-14K |
---|---|
Max Torque @ 205 Bar | 14,206 Nm |
Motor | Char-Lynn Bell |
Pressure Valve Fitted | N / A |
Energy Control Valve | N / A |
Max Pressure | Do not exceed 205 bar @ 70 lpm |
Max Flow | Do not exceed 70 lpm @ 205 bar |
Max Continuous Power | Do not exceed 25Kw (33hp) |
Overall Length | 612 mm |
Diameter | 289 mm |
Weight (no linkage / hitch) | 62 kg |
Std Output Shaft | 75 mm Square |
