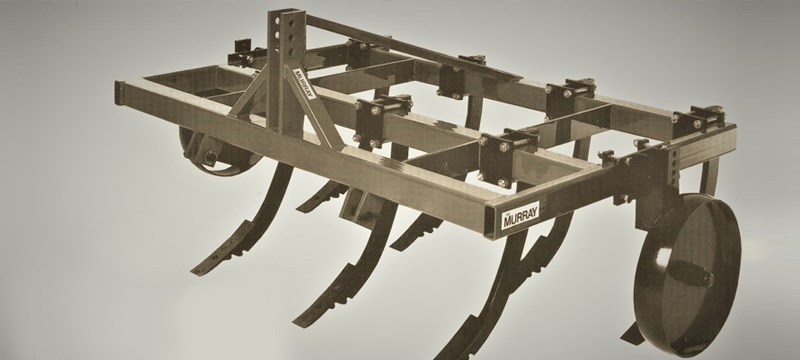

Rigid Chisel Plow - Series 62 GALLERY

Click on the images below to enlarge.

Model Specifications

Specifications

Machines are supplied with all components, including long shank tines, clamps, bottom linkage pins, clips and 75mm reversible points (Standard) etc, to fully complete the size specified
Adjustable Tine Spacing (standard spacing 300mm) – just move mount clamps and / or add additional Tine assemblies if required
Suitable for tractors fitted with Cat II three-point linkage systems. (Top link and pin NOT supplied)
Frame construction – 100mm square RHS, underframe clearance 630mm (24”), Rank spacing 760mm (30”), optional depth control wheels – 500mm 100mm approx. Tine steel shank size 75 25mm
Power requirements; This depends very much on soil type, working depth and conditions; however, allow up to 8 kw (10 hp) (PTO) per tine. ie 9 tines = approx 72 kw (90 hp).

Murray Agricultural Equipment is a market leader in Tine Harrow Systems. Our experience in manufacturing quality agricultural implements since 1903 makes us a specialist in our field.
