Model Specifications

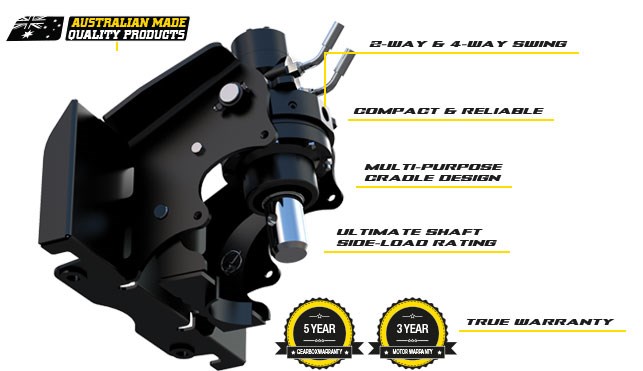

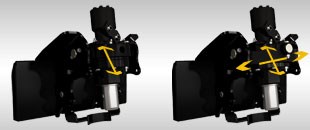

Specifications 2-way swing 4-way swing
Rec Flow Range 20-60 lpm 20-60 lpm
Torque 2900 Nm @ 205 bar 2900 Nm @ 205 bar
Motor Geroler by Danfoss Geroler by Danfoss
Max Pressure - Do not exceed 205 bar @ 40 lpm 205 bar @ 40 lpm
Max Flow - Do not exceed 60 lpm @ 160 bar 60 lpm @ 160 bar
Max Power - Do not exceed 15 Kw 15 Kw
Overall Length 434 mm 475 mm
Overall Width 615 mm 615 mm
Overall Height 483 mm 483 mm
Weight 62 kg 65 kg
Std Output Shaft 65 mm Round 65 mm Round
Rec Auger 4 Series / TP 4 Series / TP
Max Auger Dia Clay / Shale 600 mm 600 mm
Max Auger Dia Earth 750 mm 750 mm
